How
do we set the f stop setting?
There are different
methods of setting the f stop.
Single
fixed Aperture

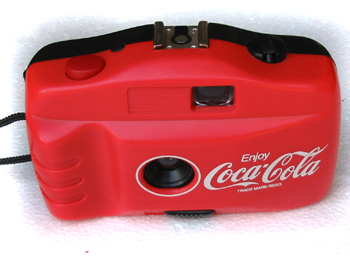

Some cameras simple
cameras, like pinhole cameras and
cheap plastic disposable cameras only have one fixed aperture setting
setting. |
|
Rotating
apertures

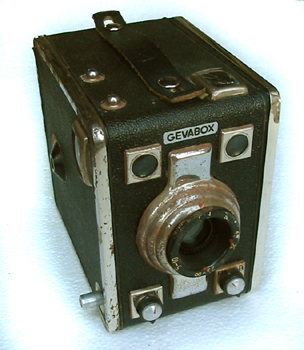

Some cameras
like box cameras have a series of aperture openings from small to larger ( usually 2 or 3) which can be
moved across the focal point of the lens.
They might have
a series of symbols marked on the lens like a sun, sun and a cloud,
cloud etc. Each of these relates to a wider diameter aperture
need to allow the appropriate amount of light into the camera. |
|
ND Filters
Mirror
lenses have a fixed aperture and use a series of Neutral density
filters which drop in to a slot at the back of the lens barrel.
While these restrict the light, they are not true apertures and
have no effect on depth of field.

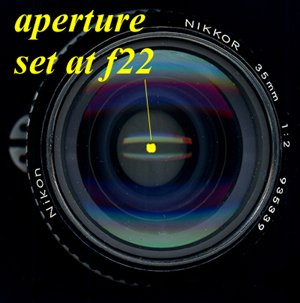

Variable Lens apertures
These are true adjustable
apertures positioned inside the lens at the focal point, and various
ways of setting these have been developed.
|
How
does aperture affect depth of field?
How are the f stop numbers worked out?
What is the difference between each f stop setting?
